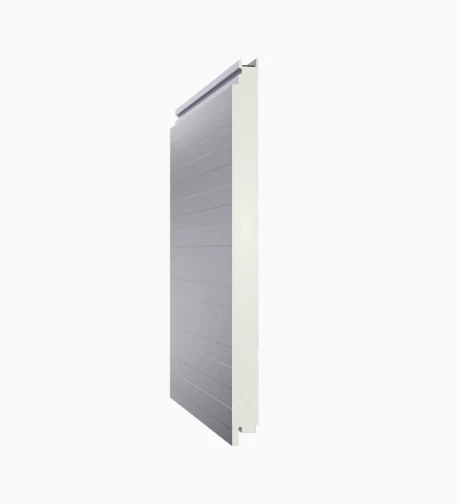

Insulated Aluminum Sandwich Panel

Insulated Aluminum sandwich panel is a new type of building decoration material made by bonding two layers of aluminum alloy panels on the top and bottom with the core material in the middle through a high-strength composite process. The core material can be selected from aluminum honeycomb, polyurethane, rock wool, polyethylene (PE) or other functional materials according to different application requirements, making the product have both structural strength, lightweight and excellent thermal insulation performance.

It is light in weight but has relatively high structural strength.

Many people think that lightweight materials mean insufficient strength, but insulated aluminum sandwich panels are just the opposite. The upper and lower two layers of aluminum alloy panels are responsible for withstanding external tensile and compressive forces, while the core material in the middle serves as a support to maintain a stable distance between the two layers of panels. When the sheet is subjected to external force, the stress can be evenly distributed throughout the composite structure, thereby significantly enhancing the overall rigidity and bending resistance.

It has excellent thermal insulation performance.

Aluminum itself conducts heat relatively quickly, but the heat insulation capacity of insulated aluminum sandwich panels mainly comes from the core material in the middle. Whether it is polyurethane, rock wool or aluminum honeycomb core materials, they all have a large number of relatively closed air layers inside, and air itself is a poor conductor of heat. These air layers can effectively block the transfer of cold and heat, reduce building energy consumption, decrease the entry of indoor heat in summer and slow down the loss of indoor heat in winter, thereby enhancing the overall energy-saving effect of the building.

The sound insulation effect is superior to that of ordinary metal plates.

Traditional single-layer metal plates are prone to sound reflection, while the multi-layer composite structure inside insulated aluminum sandwich panels can absorb and weaken the propagation of sound waves. When external noise is transmitted to the board, the core material will consume part of the sound energy and reduce the sound penetration rate.

It has strong corrosion resistance and weather resistance.

Aluminum alloy itself has a natural oxide film, which can effectively isolate air and moisture and slow down the corrosion rate. On this basis, the surface of the sheet is usually coated with protective layers such as fluorocarbon spraying, polyester spraying or powder spraying to further enhance its resistance to ultraviolet rays, acid rain and salt spray.

Insulated Aluminum sandwich panels are one of the commonly used decorative materials for the exterior facades of modern buildings, and are widely applied in construction projects such as office buildings, commercial complexes, hotels, airports, exhibition centers, hospitals and schools.

In industrial plants, logistics warehouses, production workshops and prefabricated buildings, insulated aluminum sandwich panels are often used for exterior wall cladding, roof systems and internal partition walls.

Insulated aluminum sandwich panels are also suitable for interior walls, ceilings, partitions, background walls, and elevator decoration Spaces, etc.

As a professional manufacturing enterprise with twenty years of experience in Building materials manufacturing, Zibo Zhonggang Building Material Co., Ltd. We have always adhered to a strict quality control system. From raw material procurement to finished product delivery, each insulated aluminum sandwich panel undergoes thickness testing, peel strength testing, insulation performance testing and appearance quality inspection to ensure that the product meets the requirements of international construction projects for safety, durability and energy-saving performance. We have exported to many countries and regions such as Europe, Australia, the Middle East, South America and Africa.

If you are looking for insulated aluminum sandwich panel products that combine lightweight, high strength, energy conservation, environmental protection and decorative effects, please feel free to contact us. We can provide core material selection, specification customization, color design, technical consultation and engineering support services based on project requirements. We also support OEM, ODM and mass production, offering reliable and high-quality material solutions for your construction projects.

Q1: What are the common core materials for insulated aluminum sandwich panels?

A: Common core materials include polyurethane (PU), rock wool, polystyrene (EPS), etc. Different core materials have different thermal insulation, fire resistance and sound insulation properties.

Q2: In which construction projects are insulated aluminum sandwich panels suitable?

A: The products are widely applied in industrial plants, warehouses, cold storage facilities, clean workshops, commercial buildings, hospitals, stadiums and prefabricated buildings, etc.

Q3: How long is the service life of the product?

Under normal usage and maintenance conditions, the service life of high-quality insulated aluminum sandwich panels can usually reach over 20 years.
